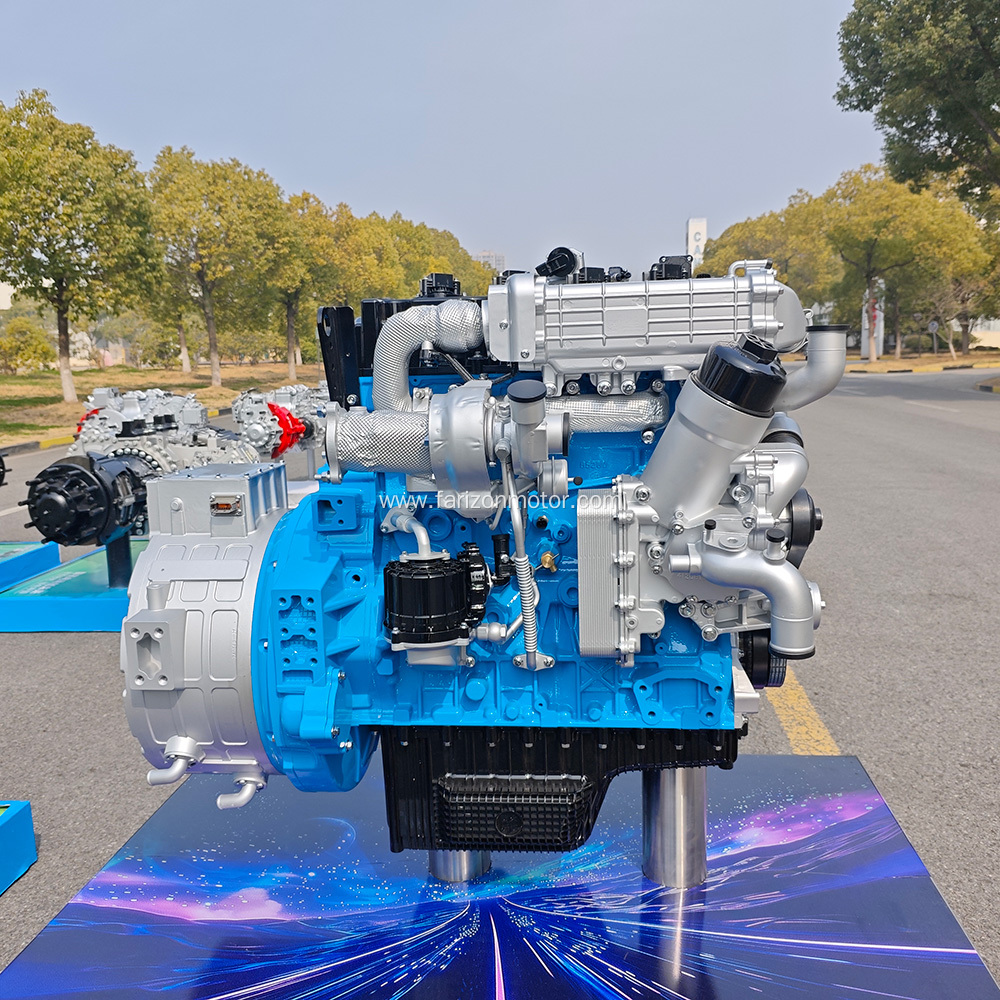

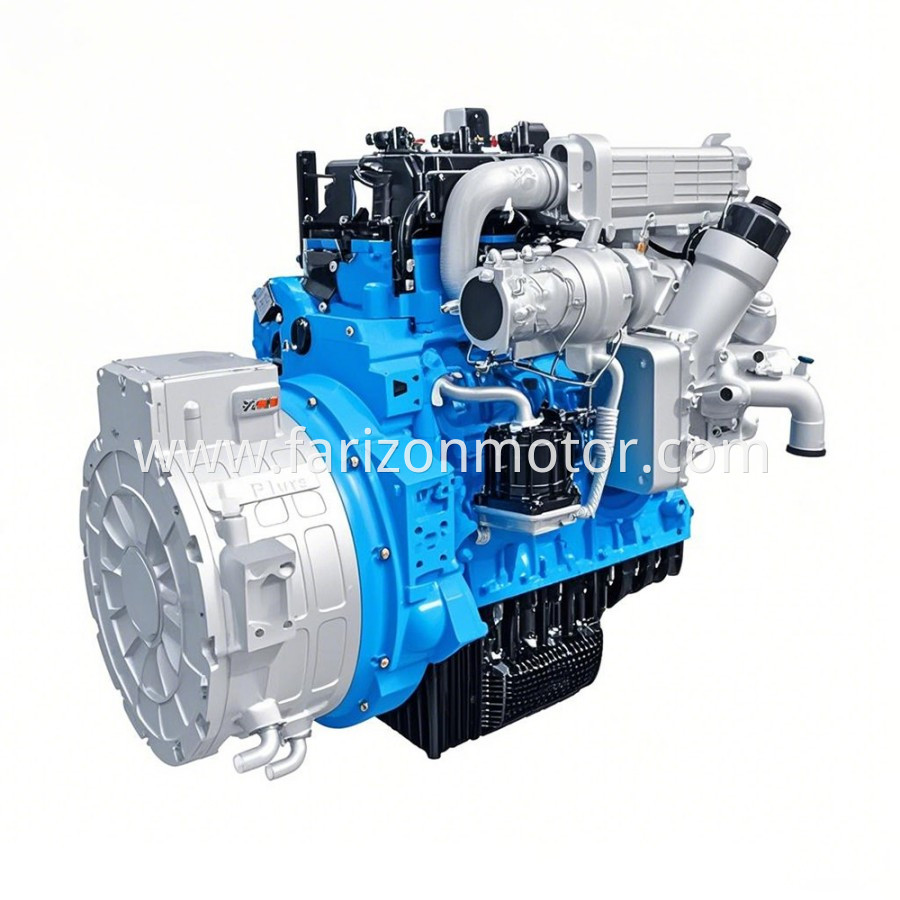

CAMC High Performance Eco-Friendly Methanol Fuel Engine
CAMC High Performance Eco-Friendly Methanol Fuel Engine
CAMC High Performance Eco-Friendly Methanol Fuel Engine
CAMC High Performance Eco-Friendly Methanol Fuel Engine
CAMC High Performance Eco-Friendly Methanol Fuel Engine
CAMC High Performance Eco-Friendly Methanol Fuel Engine
CAMC High Performance Eco-Friendly Methanol Fuel Engine

CAMC High Performance Eco-Friendly Methanol Fuel Engine

Get Latest Price
    Contact Now
    Share:
    • Min. Order: 1
    Description
    Product Attributes

    Model No.: GS06M

    Packaging & Delivery
    Product Description
    Efficient range extender system: engine thermal efficiency of4596;The highest eficiency of the motor is 97.44%,and the averageeficiency of each powerpoint is 95%,leading intemationaly;
    Ultra lightweight design:Lightweight cylinder head cover,oilpan,turbocharger intake pipe,allaluminum fiywheel housing
    Modular design:Machinecooingmodule and modularintake of airthrough the crankshaft;
    NVH:The surface sound pressure levels of the steady-state rangeextender at 20kW and 150kW power points are 70.5dBA and 90.2dBA,which are better than industry competitors;
    Ultra low fuel cost:adopting advanced technologies such astheoretical air-fuel ratio closed-loop control and multi-point fuelinjection to optimize combustion,the engine has better fuel economy,lowoperating costs,and extremely high cost-effectiveness.Compared todieselengines,it can save 40.2%ineconomy;
    High reliabilty:Adhere to the concept of high-qualitydevelopment,from a technical perspective CAE analysis andexperimental verification are considered from multiple dimensions toensure reliable product quality,B10 has a lifespan of≥1.5 millionkilometers;
    Ultra low emissions:Methanol is recognized as a clean energysource.Compared to conventional fuels such as gasoline and diesel,methanol combustion is more complete and thorough,and itsemissionsinclude CO HC and NOx emissions have significantly decreased,with areduction of≥95%,achieving near zero emissions.

    发动机性能参数/Engine  performance  parameters
    项 目Item 单位Unit 参数Parameter
    型式Type 一
    直列、四冲程、液冷、增压中冷
    In-line,four-stroke,liquid-cooled,supercharged and intercooled
    额定功率/转速Rated power/speed kW/rpm 180/2000
    最大扭矩/转速Maximum torque/speed Nm/rpm 950/1200-1500
    最高空载转速Maximum no-load speed r/min 2200±50
    怠速Ider speed r/min 700±50
    活塞总排量Total piston displacement L 5.91
    气缸数-缸径×行程
    Number of cylinders-bore*stroke
    		 mm 4-112×150
    工作顺序Work order 一 1-3-4-2
    旋转方向(从飞轮端看)
    Direction of rotation (from the flywheel end)
    		 一 逆时针Counterclockwise
    发动机铭牌质量Engine nameplate quality kg 525(不含油、水)(without oil or water)
    燃料类型Fuel type 一
    主燃料： M100甲醇 Main fuel:M100 methanol
    辅助起动燃料：92#汽油 Auxiliary starting fuel:92#gasoline
    一
    不使用汽油辅助起动装置，需标配冷却液加热保证发动机启动
    No gasoline auxiliary starting device is used,and coolant heating is required to ensure engine starting
    排气温度Exhaust temperature ℃ ≤620
    增程器电压平台Range extender voltage platform V 600
    增程器额定电流Range extender rated current A 220
    增程器最大发电功率Range extender maximum power generation rate kW 150
