Our high-efficiency
natural gas engines deliever reliable, low-carbon power for diverse applications. Leveraging lean-burn technology and intelligent controls, these engines cut operational costs while meeting stringent global emissions standards—ideal for decarbonizing operations without sacrificing performance.

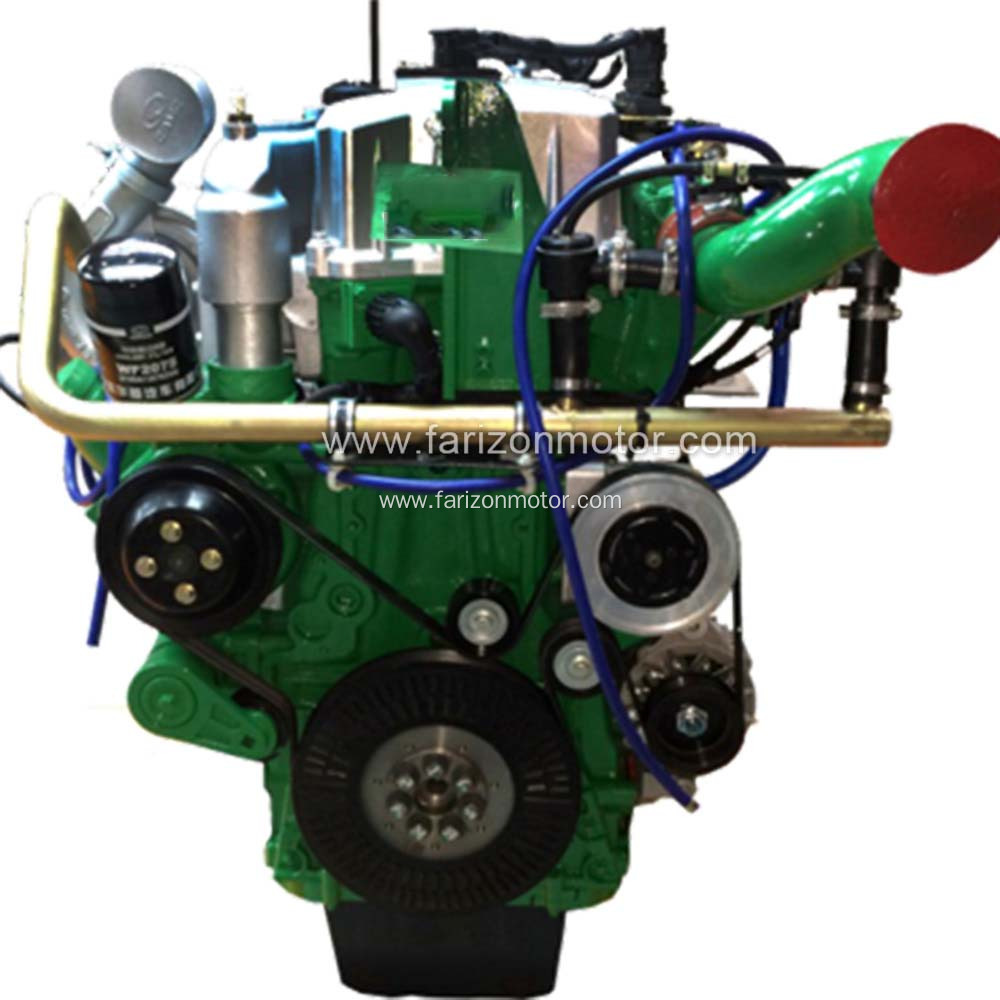

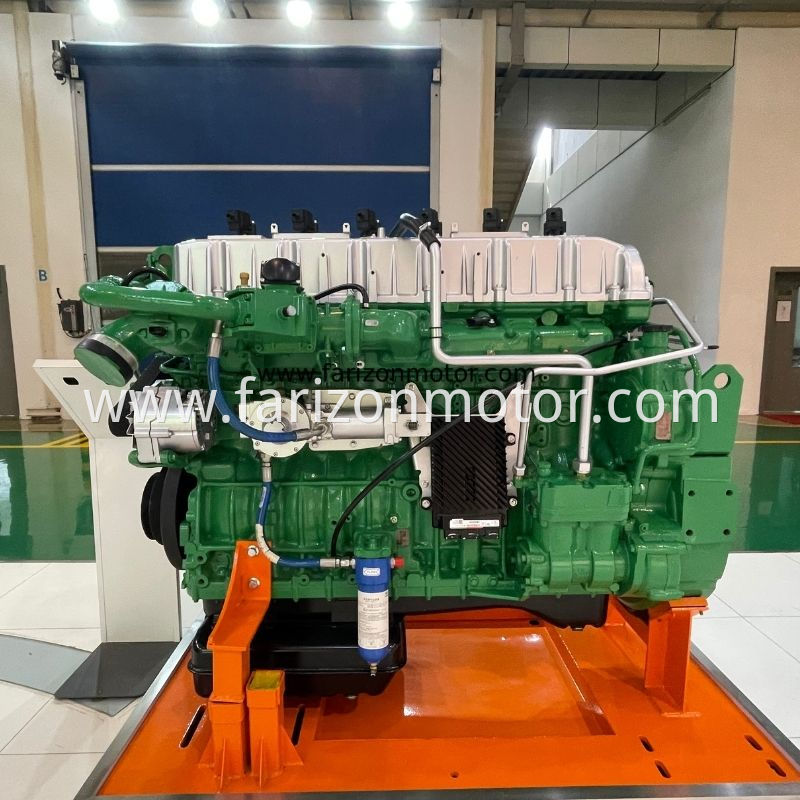

The general layout design of the HMT13F series CAMC natural gas-
powered Generator is a design scheme determined by fully considering the characteristics ofnatural gas combustion.
Main structural features:
Adopt advanced design structures such as single overhead camshaft,integral four-valve cylinder head,in-line six cylinders,water-cooled wet cylinder liner,four-stroke,rear gear chamber,etc.;
Water-cooled turbocharger,speacial piston for shallow basin type
Gas Engine,high temperature and wear-resistant valve seat ring, special piston ring for gas engineto prevent oil burning.
Control system:
Woodward PG+low-pressure gas injection system,and matching intelligent high-energy ignition system.
| engine performance parameters |
| Model | Unit | HMT12F.380 30 | HMT12F.408 32 |
| Rated power/Speed | kW/r/min | 280/1500 | 300/1800 |
| Overload power/Speed | kW/r/min | 308/1500 | 330/1800 |
| Type | | Vertical Inline Water-cooled four stroke |
| Intake way | | Turbo-charged &inter-cooled |
| Number of cylinders | | 6 | 6 |
| Bore×Stroke | mm×mm | 128x153 | 128x153 |
| Compression ratio | | 12:01 | 12:1 |
| Displacement | L | 11.8 | 11.8 |
| Specific Fuel consumption | g/kW ·h | ≤190 | ≤191 |
| Oil capacity | L | 38 | 38 |
| Noise | | ≤97dB(A) |
| Emission level | | GB20891China Phase Ⅲ |
| L×W×H | mm | 1360×898×1138 | 1360×898×1138 |
| Weight | kg | 1065 | 1065 |
