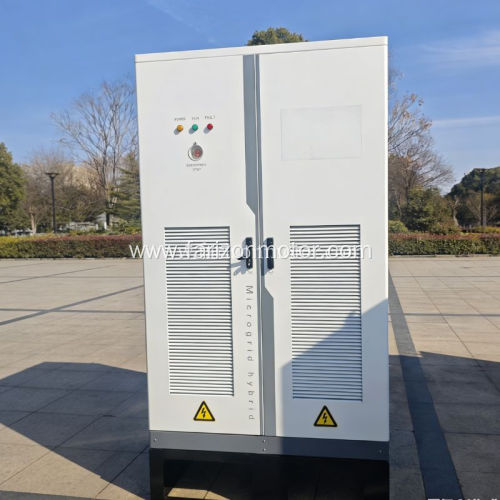

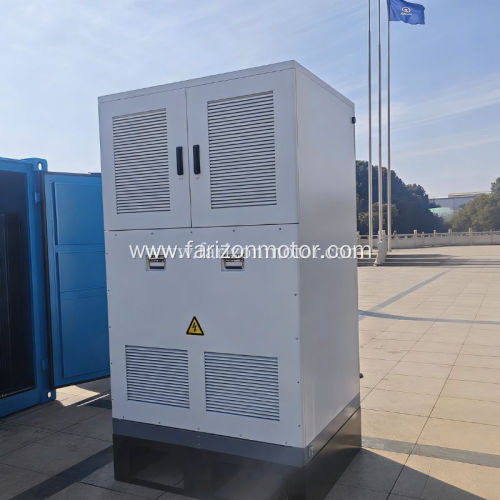

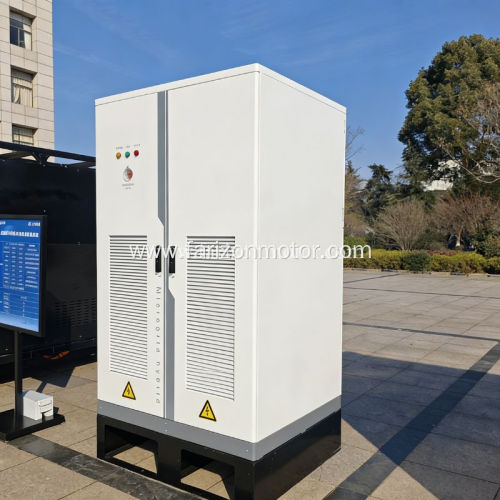

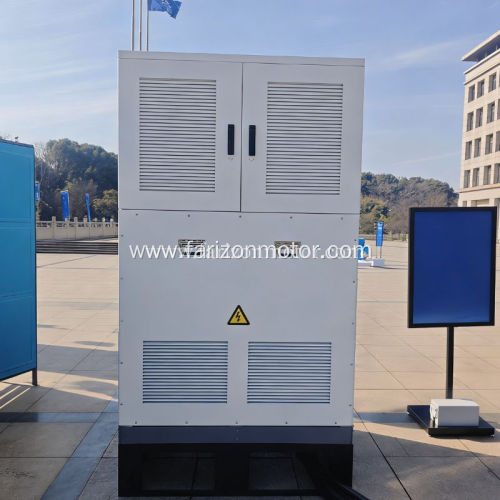

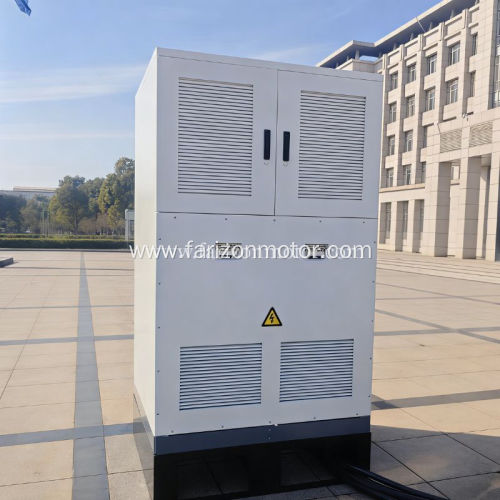

Solution For Methanol Hydrogen Generator Set



Solution For Methanol Hydrogen Generator Set

Get Latest Price

use	Other
fuel	Methanol
Contact Now

Min. Order: 1

Description

Product Attributes

Model No.: GS14M440HF-45

Brand: Farizon

Origin: Guangzhou，Guangdong，China

Out-of-warranty Service: Video Technical Support, Online Support

Old And New: New

Number Of Cylinders: Multi-Cylinder

Cooling Method: Water-Cooled

Place Of Origin: China

Warranty Period: 1 Year

Service System: Overseas Third-Party Support Available

Emission Standards: Other

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Packaging & Delivery

Supply Ability & Additional Information

Place of Origin: Guangzhou，Guangdong，China

Product Description

The World's First Alcohol Hydrogen Generator Solution

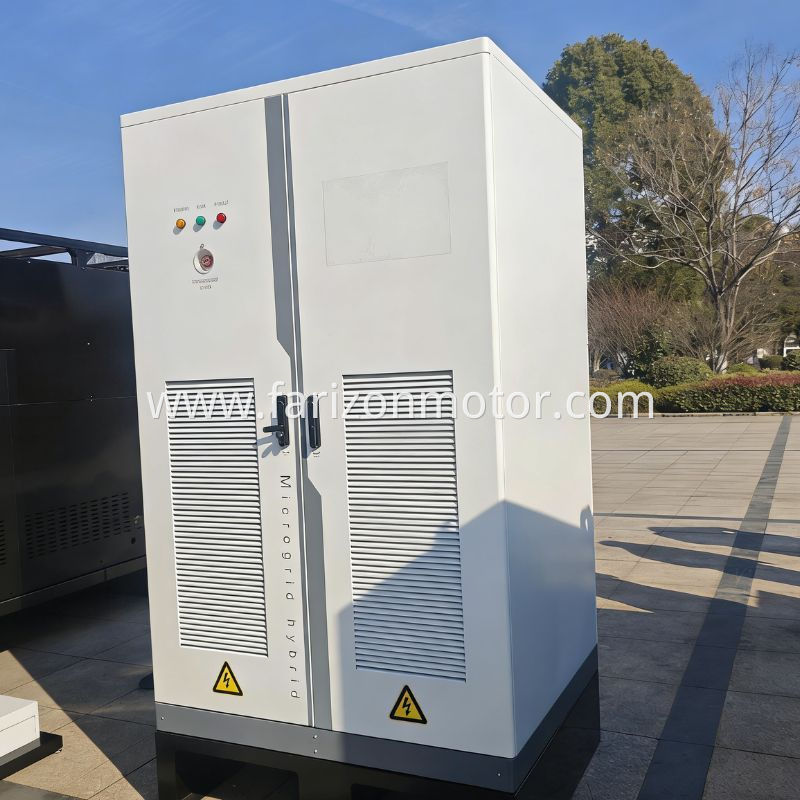

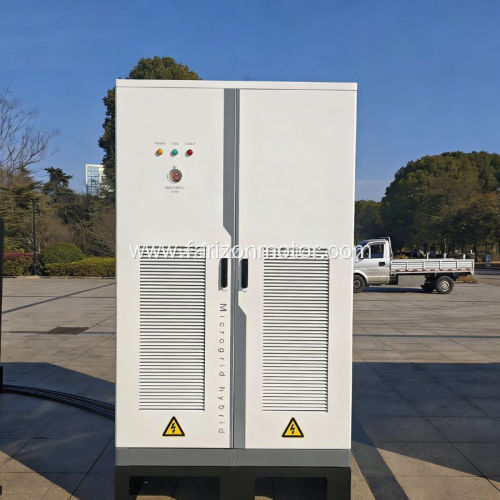

The FARIZON alcohol hydrogen generator solution adopts GS14m440HF-45 alcohol hydrogen generator as the core, integrates efficient energy storage system, and provides two configurations: 300kW single box unit and 600kW dual unit, fully meeting the G2 standard requirements. The rated speed of the engine is 1500rpm, the rated power is 324kW, the standby power is 356kW, and the 13.67L large displacement design ensures stable and reliable power output.

This solution innovatively integrates Methanol Fuel and hydrogen energy technology, with low-carbon and environmentally friendly characteristics, and is suitable for scenarios such as data centers and industrial parks. The intelligent control system achieves precise power regulation, supports rapid deployment and remote monitoring, and provides customers with efficient and clean power guarantee.

Engine	Brand/Model	GS14M440HF-45
	Rated revolution (rpm)	1500
	Rated power (kW)	324
	Standby power (kW)	356
	Discharge capacity (L)	13.67

Generator set	Category	300KW single-box unit	600KW single-box unit	Parameters of energy storage system
	Rated power (kW/kVA)	280/350	550/687.5	System capacity: 282kWh * 4
	Standby power (kW/kVA)	308/385	600/750	Maximum charging power of battery pack: 125kW * 4
	Number of phases	Three-phase four-wire system	Three-phase four-wire system	Maximum discharge power of battery pack: 125kW * 4
	Power factor	PF=0.8	PF=0.8	DC operating voltage range: 580V~1000V
	Voltage (V)	400/230	400/230	Maximum AC output power: 500kW
	Current (A)	445	900	Rated AC voltage: 400V
	Voltage adjustment range	≥ ±5%	≥ ±5%	Rated AC current: 728A
	Steady-state voltage regulation rate	≤ ±1%	≤ ±1%	Rated AC frequency: 50Hz/60Hz
	Transient state performance	Meet G2 standard	Meet G2 standard	Apparent power of isolation transformer: 500kVA
	External dimension (mm)	425015002500	520030003000	——

The file is encrypted. Please fill in the following information to continue accessing it

Enter your inquiry details, We will reply you in 24 hours.

* Please fill in the information

* Please fill in your e-mail

* Please fill in the content

People who viewed this item also viewed

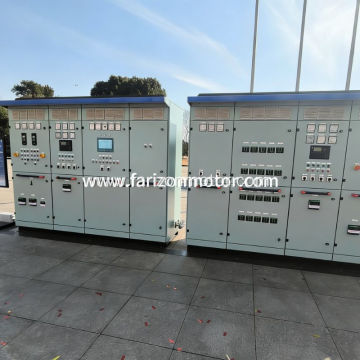

Marine Alcohol Hydrogen Generator Set

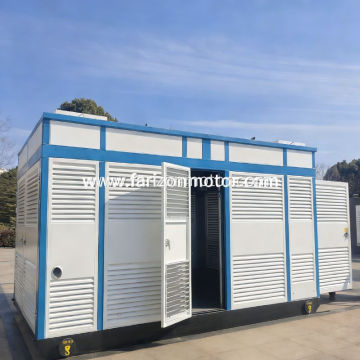

Alcohol Hydrogen Engine Group

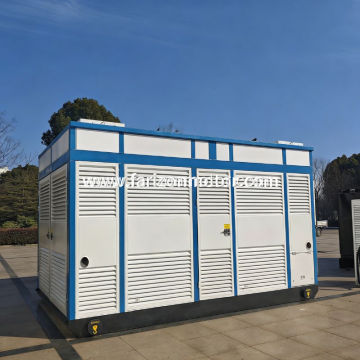

Integrated Methanol Hydrogen Electric Power Generation Unit

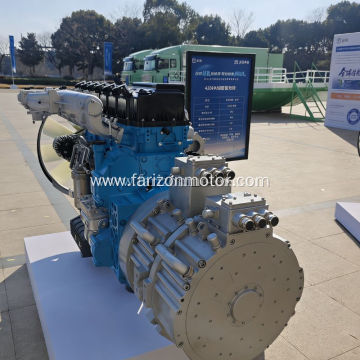

420KW Alcohol Hydrogen Electric

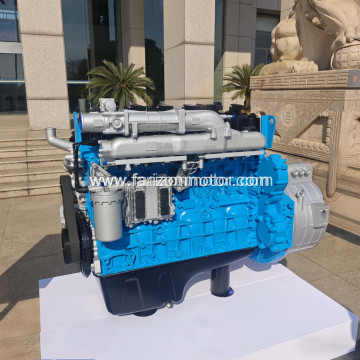

260kW Alcohol Hydrogen Electric Vehicle

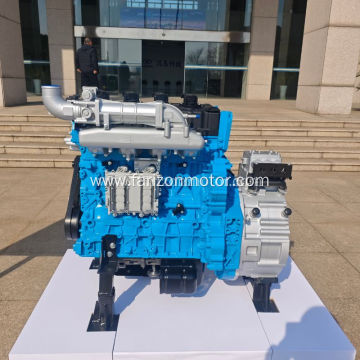

170KW Alcohol Hydrogen Electric
