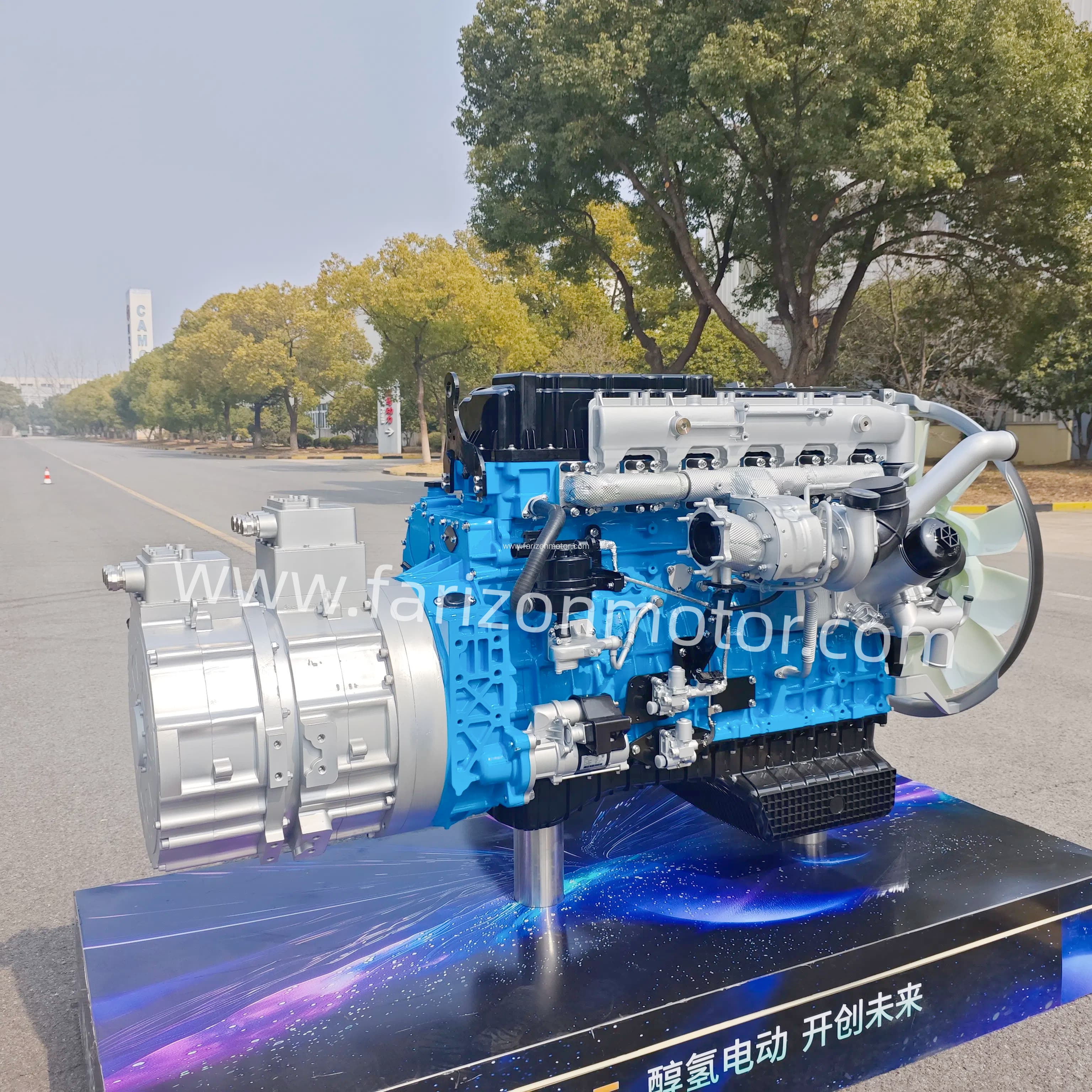

CAMC High Performance Eco-Friendly Methanol Fuel Engines

Get Latest Price

Contact Now

Min. Order: 1

Description

Product Attributes

Model No.: GS06M

Brand: FARIZON

Packaging & Delivery

Product Description

fficient range extender system: engine thermal efficiency of4596;The highest eficiency of the motor is 97.44%,and the averageeficiency of each powerpoint is 95%,leading intemationaly;

Ultra lightweight design:Lightweight cylinder head cover,oilpan,turbocharger intake pipe,allaluminum fiywheel housing

Modular design:Machinecooingmodule and modularintake of airthrough the crankshaft;

NVH:The surface sound pressure levels of the steady-state rangeextender at 20kW and 150kW power points are 70.5dBA and 90.2dBA,which are better than industry competitors;

Ultra low Fuel cost:adopting advanced technologies such astheoretical air-fuel ratio closed-loop control and multi-point fuelinjection to optimize combustion,the engine has better fuel economy,lowoperating costs,and extremely high cost-effectiveness.Compared todieselengines,it can save 40.2%ineconomy;

High reliabilty:Adhere to the concept of high-qualitydevelopment,from a technical perspective CAE analysis andexperimental verification are considered from multiple dimensions toensure reliable product quality,B10 has a lifespan of≥1.5 millionkilometers;

Ultra low emissions:Methanol is recognized as a clean energysource.Compared to conventional fuels such as gasoline and diesel,methanol combustion is more complete and thorough,and itsemissionsinclude CO HC and NOx emissions have significantly decreased,with areduction of≥95%,achieving near zero emissions.

engines performance parameters

Methanol Engines performance parameters
Item	Unit	Parameter
Type
Rated power/speed	kW/rpm	180/2000
Maximum torque/speed	Nm/rpm	950/1200-1500
Maximum no-load speed	r/min	2200±50
Ider speed	r/min	700±50
Total piston displacement	L	5.91
Number of cylinders-bore*stroke	mm	4-112×150
Work order	一	1-3-4-2
Direction of rotation (from the flywheel end)	一	Counterclockwise
Engine nameplate quality	kg	525(without oil or water)
Fuel type	一	Main fuel:M100 methanol Auxiliary starting fuel:92#gasoline
Fuel type	一	No gasoline auxiliary starting device is used,and coolant heating is required to ensure engine starting
Exhaust temperature	℃	≤620
Range extender voltage platform	V	600
Range extender rated current	A	220
Range extender maximum power generation rate	kW	150
