Model No.: HMT 12F.380 30/HMT 12F.408 32/HMT 13F.408 30/HMT 13F.435 32
Brand: FARIZON

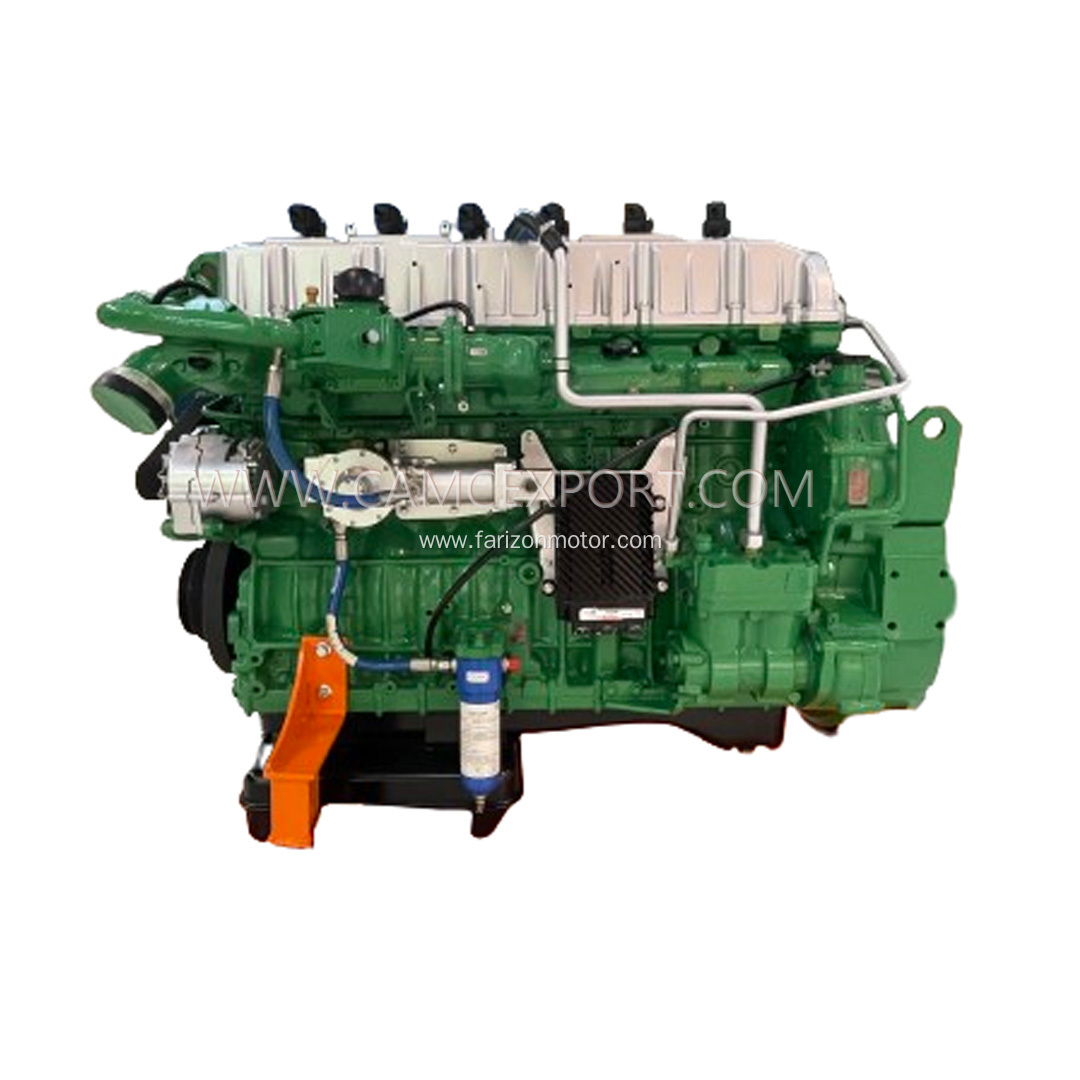

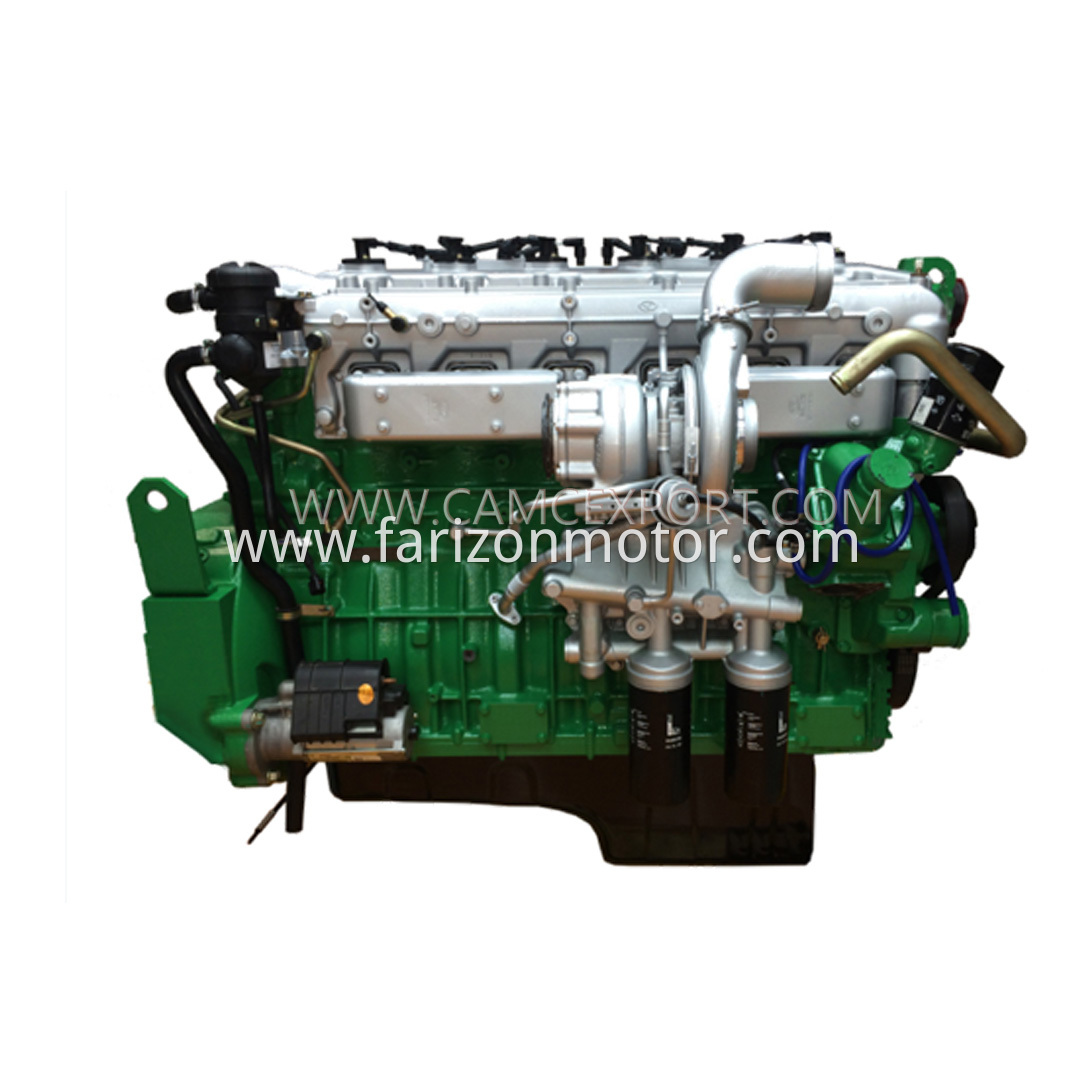

High - Efficiency Natural Gas Engine
Our high-efficiency natural gas engines deliever reliable, low-carbon power for diverse applications. Leveraging lean-burn technology and intelligent controls, these engines cut operational costs while meeting stringent global emissions standards—ideal for decarbonizing operations without sacrificing performance.
| HMT 12F.380 30 | HMT 12F.408 32 | HMF 13F.408 30 | HMF 13F.435 32 | ||
| Rated power/Speed | kW/r/min | 280/1500 | 300/1800 | 300/1500 | 320/1800 |
| Overload power/Speed | kW/r/min | 308/1500 | 330/1800 | 330/1500 | 352/1800 |
| Type | - | Vertical inline Water-cooled four stroke | |||
| Intake way | - | urbo-charged & inter-cooled | |||
| Number of cylinders | - | 6 | 6 | 6 | 6 |
| Bore X Stroke | mm×mm | 128x153 | 128x153 | 130x16111 | 130x1611 |
| Compression ratio | - | 12:1 | 12:1 | 11.5:1 | 11.5:1 |
| Displacement | L | 11.8 | 11.8 | 12.8 | 12.8 |
| Specific Fuel consumption | g/kW・h | ≤190 | ≤191 | ≤192 | ≤192 |
| Oil capacity | L | 38 | 38 | 41 | 41 |
| Noise | - | ≤97dB (A) | |||
| Emission level | - | GB20891 China Phase III | |||
| L×W×H | mm | 1360x898x1138 | 1360x898x1138 | 1436x939x1479 | 1436x939x1479 |
| Weight | kg | 1065 | 1065 | 1078 | 1078 |
The general layout design of the CM6T28F series CAMC natural gas - powered Generator set is a design scheme determined by fully considering the characteristics of natural gas combustion. Main structural features:
Adopt advanced design structures such as single overhead camshaft, integral four - valve cylinder head, in - line six cylinders, water - cooled wet cylinder liner, four - stroke, rear gear charger, etc.
