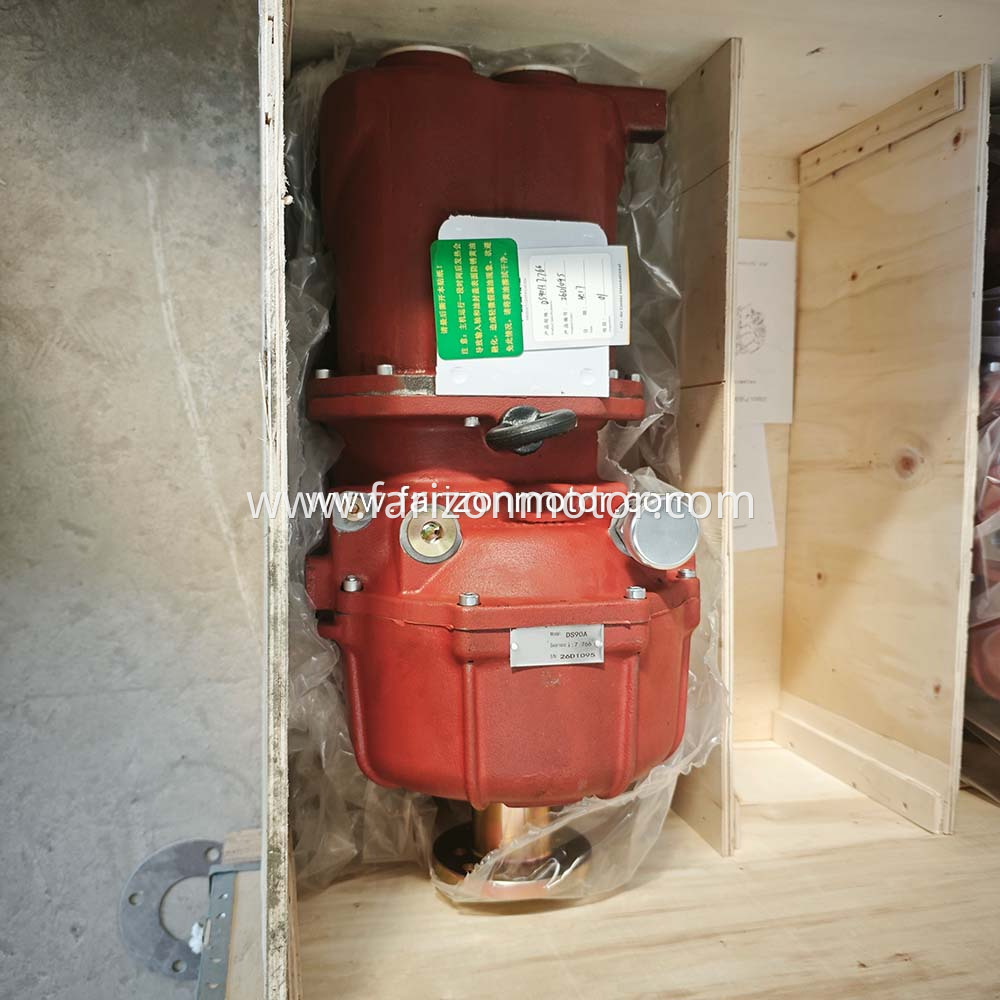

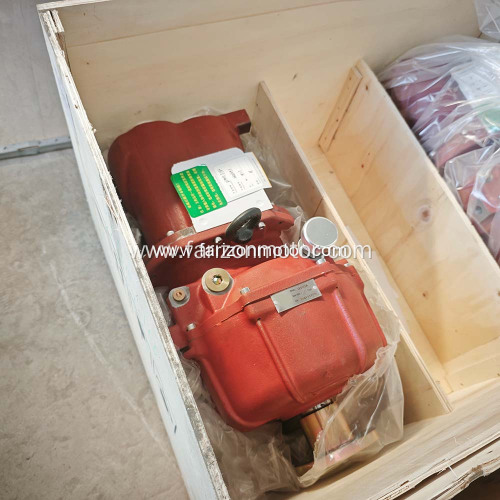

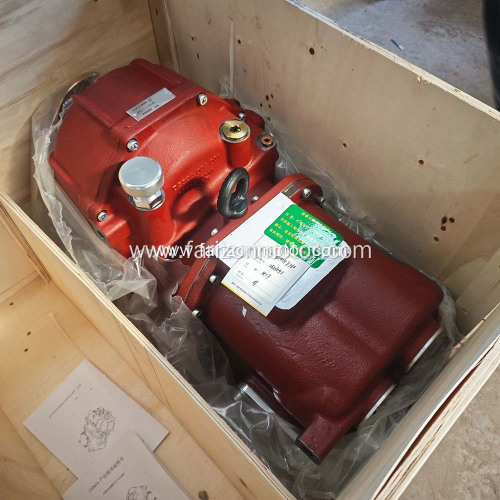

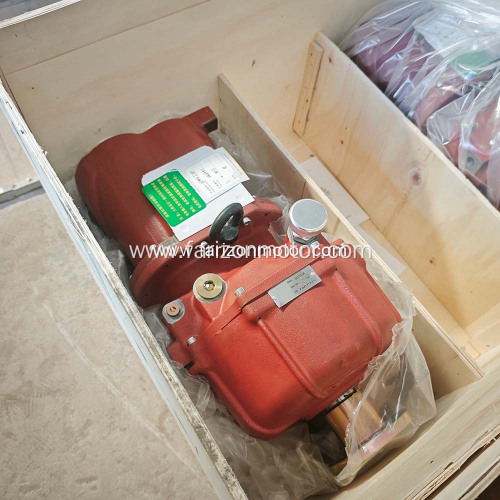

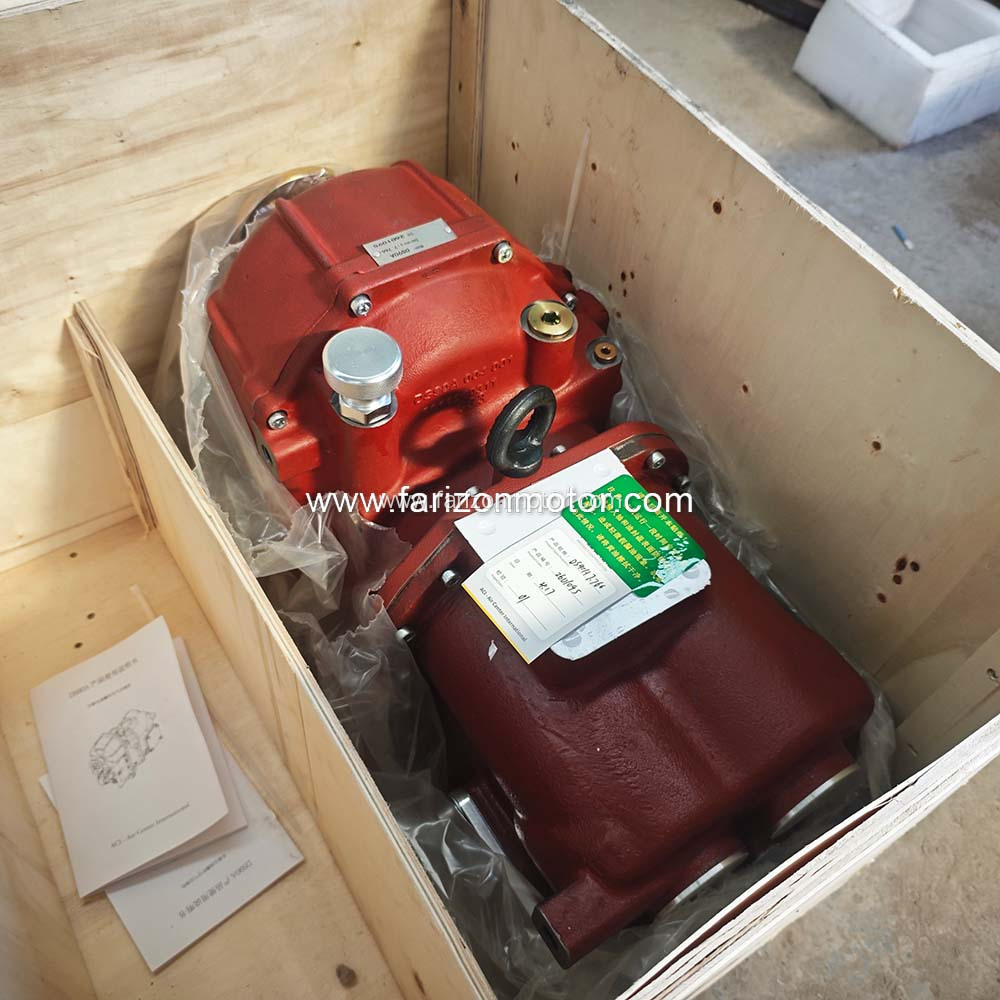

DS90A High-power Screw Air Compressor

Name: CAMC DS90A Silicone Free Screw Compressor
Uploaded: 2026-04-29T02:15:09+08:00
Description: FARIZON DS90A silicon free screw air compressor is designed specifically for conveying powder and granular materials.

Get Latest Price

option	Maximum exhaust temperature: 230 ° C Exhaust pressure: 1-2.5 bar Gas volume range: 10-12m2/min Minimum suction pressure:>0.8bar.abs Input speed range: 800-1000rpm Lubricating oil pressure: ≥ 0.3bar
Contact Now

Min. Order: 1

Description

Product Attributes

Model No.: DS90A

Brand: farizon

Speed: 800-1000rpm

Packaging & Delivery

Product Description

FARIZON DS90A silicon free screw air compressor is designed specifically for conveying powder and granular materials. It is compatible with pneumatic conveying scenarios for powder and granular materials, and provides a dedicated motor drive solution for fixed positions. It meets the dual needs of both in car and fixed scenarios. With the maturity of FARIZON manufacturing technology, it has become the preferred supporting equipment in the transportation of powder and granular materials due to its small size, light weight, and strong adaptability. The core advantages of this compressor are outstanding, with a compact size, high power density, and the use of Clean energy. The external dimensions are only 604 * 281 * 432mm, which does not occupy too much vehicle space; Lightweight, with a net weight of 128KG and a total weight of less than 220KG, it can effectively reduce the overall load of the vehicle; With a speed as low as 800-1000RPM, there is no need to match a dedicated power take-off, simplifying the matching process and reducing adaptation costs; The input angle of the transmission shaft is small, and the ground clearance height is reasonable, which can effectively avoid complex road conditions and collisions, greatly reducing the equipment failure rate; Easy to install, adaptable to most vehicle chassis models, and can be quickly put into use without complex modifications. Equipped with a silicon free and oil-free design, it outputs clean compressed air to avoid material contamination. It is suitable for conveying various types of powders and granular materials, helping to improve conveying efficiency and reduce operating and maintenance costs.

MODEL	DISCHARGE PRESSURE	INPUT SPEED	700	800	900	1000	1100
DS90A	1	Air flow，m3/min	8.0	9.7	11.3	13.0	14.6
		Shaft power，KW	23.7	26.4	29.4	32.3	34.8
		Discharge Temp，°C	115	113	111	109	107
	1.5	Air flow，m3/min	7.7	9.4	11.0	12.6	14.2
		Shaft power，KW	26.5	29.3	32.6	35.9	38.6
		Discharge Temp，°C	145	143	141	139	137
	2	Air flow，m3/min	7.5	9.1	10.7	12.2	13.7
		Shaft power，KW	29.9	33.4	37.2	40.9	44
		Discharge Temp，°C	170	168	166	164	162
	2.5	Air flow，m3/min	7.3	8.9	10.4	11.9
		Shaft power，KW	33.3	37.1	41.3	45.4
		Discharge Temp，°C	188	186	184	182
