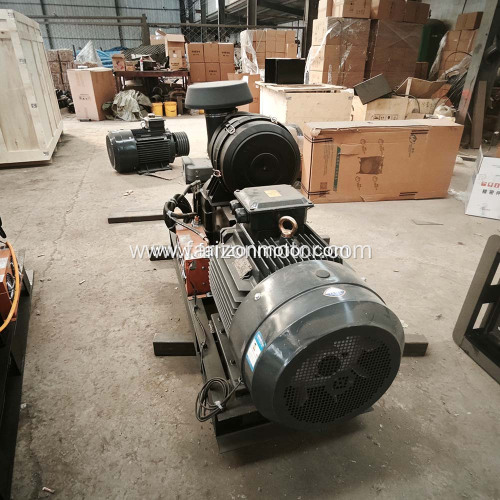

High Power H1.12-DS90A Screw Compressor

Name: Electric air compressor
Uploaded: 2026-04-29T02:48:34+08:00
Description: The HL12-DS90A silicon free electric screw compressor unit is an oil-free power matching equipment specially designed

Get Latest Price

Power (Watts)	40kW
Contact Now

Min. Order: 1

Description

Product Attributes

Model No.: HL12-DS90A

Brand: farizon

Speed: 1500rpm

Unit Weight: 500kg

Dimensions: 1900*610*1000 mm

Air Compressor Displacement: 12 m³/min

Compressor Speed: 1500 r/min

Exhaust Pressure Of Air Compressor: 0.2 Mpa

Packaging & Delivery

Product Description

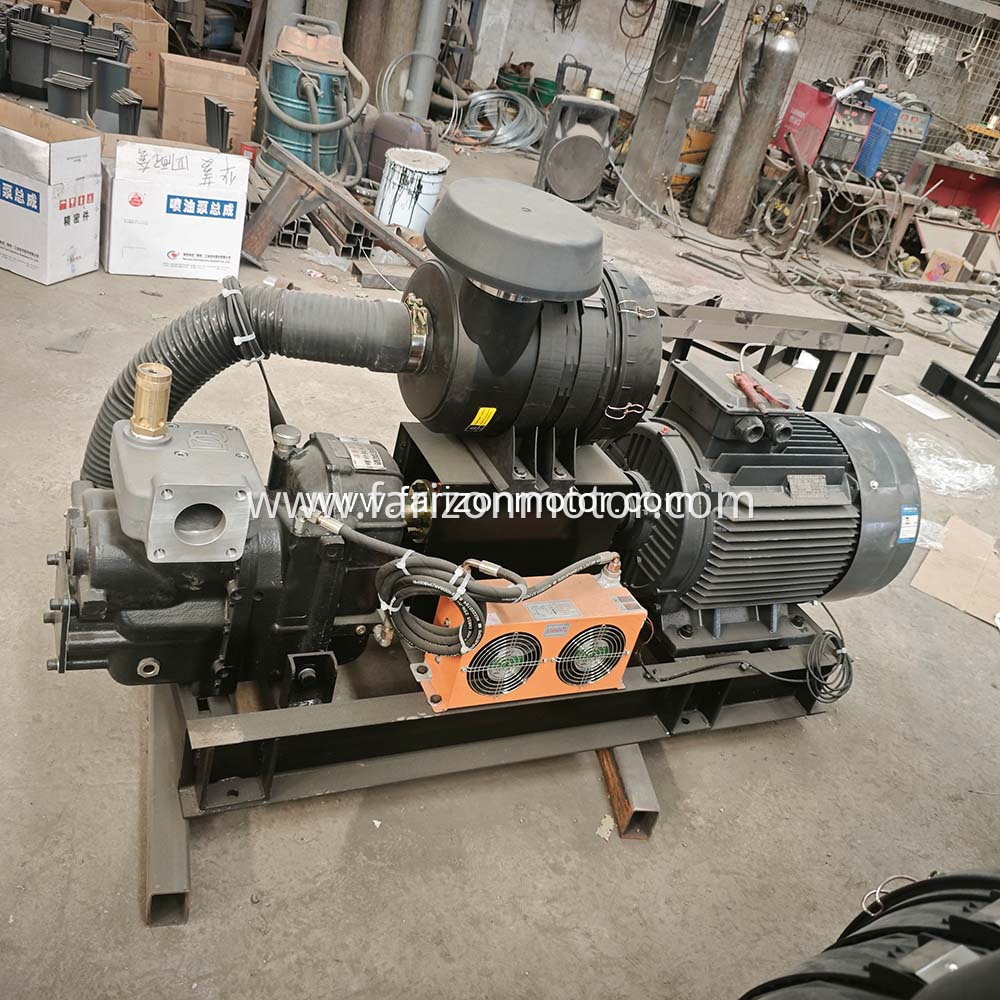

The HL12-DS90A silicon free electric screw compressor unit is an oil-free power matching equipment specially designed for conveying powder and granular materials. It is designed to meet the pneumatic conveying needs of various types of powder and granular materials, relying on FARIZON's mature power equipment manufacturing technology, combined with silicon free and oil-free design and efficient electric drive. With its core advantages of stable parameters, strong adaptability, high power density, and cleanliness and environmental protection, it has become the preferred supporting equipment in the field of powder and granular material transportation. The parameter configuration of the unit is precise and controllable. The Air Compressor unit model is HL12-DS90A, equipped with DS90A air compressor and YE3-225M-4 motor. The device weighs 500kg and has dimensions of 1900 * 610 * 1000mm. It has a compact structure and does not take up too much vehicle space; The air compressor has a displacement of 12m ³/min, an exhaust pressure of 0.2Mpa, a speed of 1500r/min, a shaft power of 40kw, and stable and efficient power output. It can quickly provide sufficient clean compressed air for specialized vehicles transporting powder materials, helping to achieve efficient unloading. Suitable for conveying dry powder materials such as cement, fly ash, and mineral powder with a diameter not exceeding 0.1mm, meeting the core requirements of pneumatic unloading for powder material transportation vehicles. Its silicon free and oil-free design can output clean compressed air, completely avoiding residual lubricating oil pollution and ensuring material purity. Combined with YE3-225M-4 high-efficiency New Energy motor, it has low energy consumption and stable operation. Meanwhile, the unit structure has strong adaptability and can flexibly match the chassis of various specialized vehicles for transporting powder materials. Easy installation, stable and reliable operation, effectively improving material transportation efficiency, reducing operation and maintenance costs, balancing practicality and economy.
