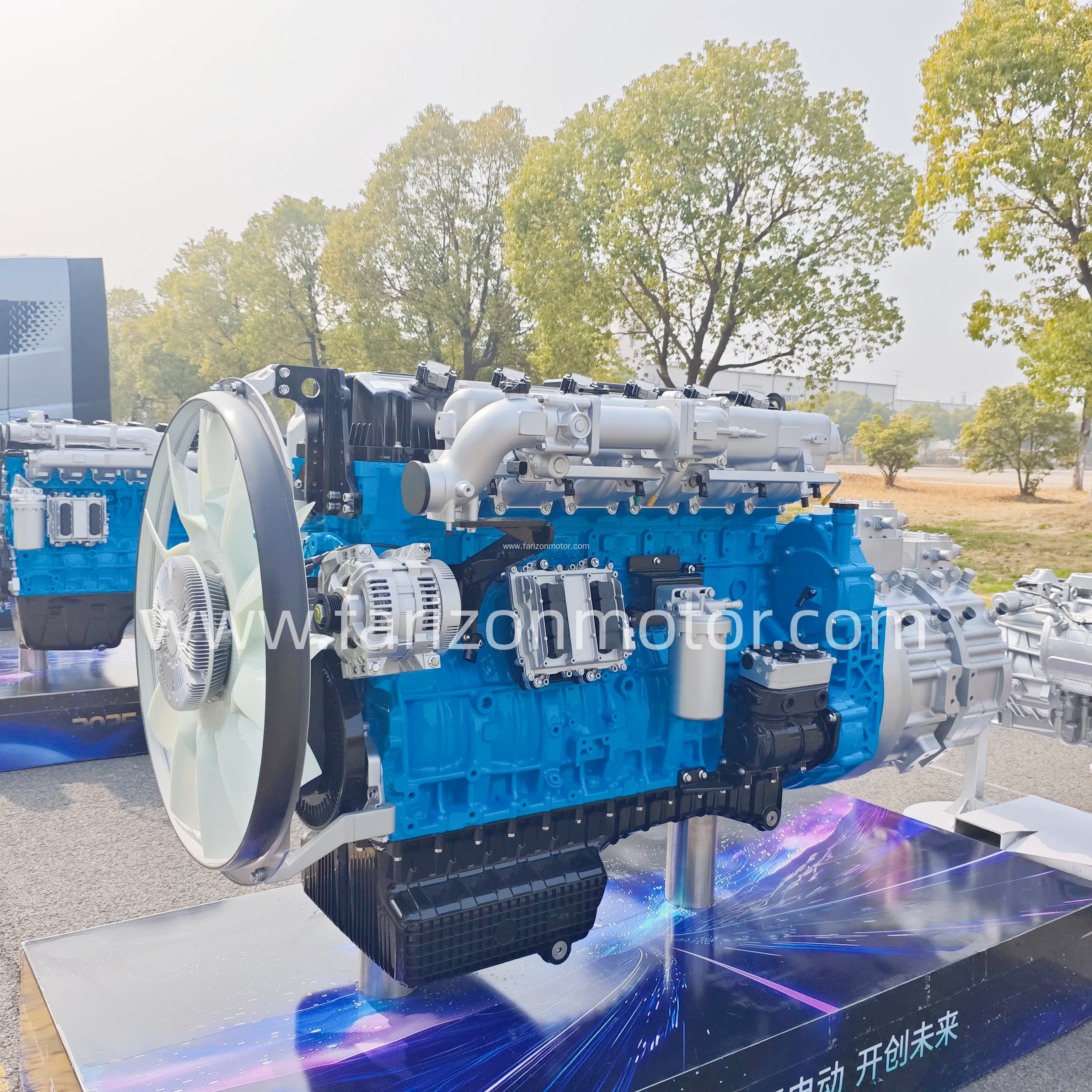

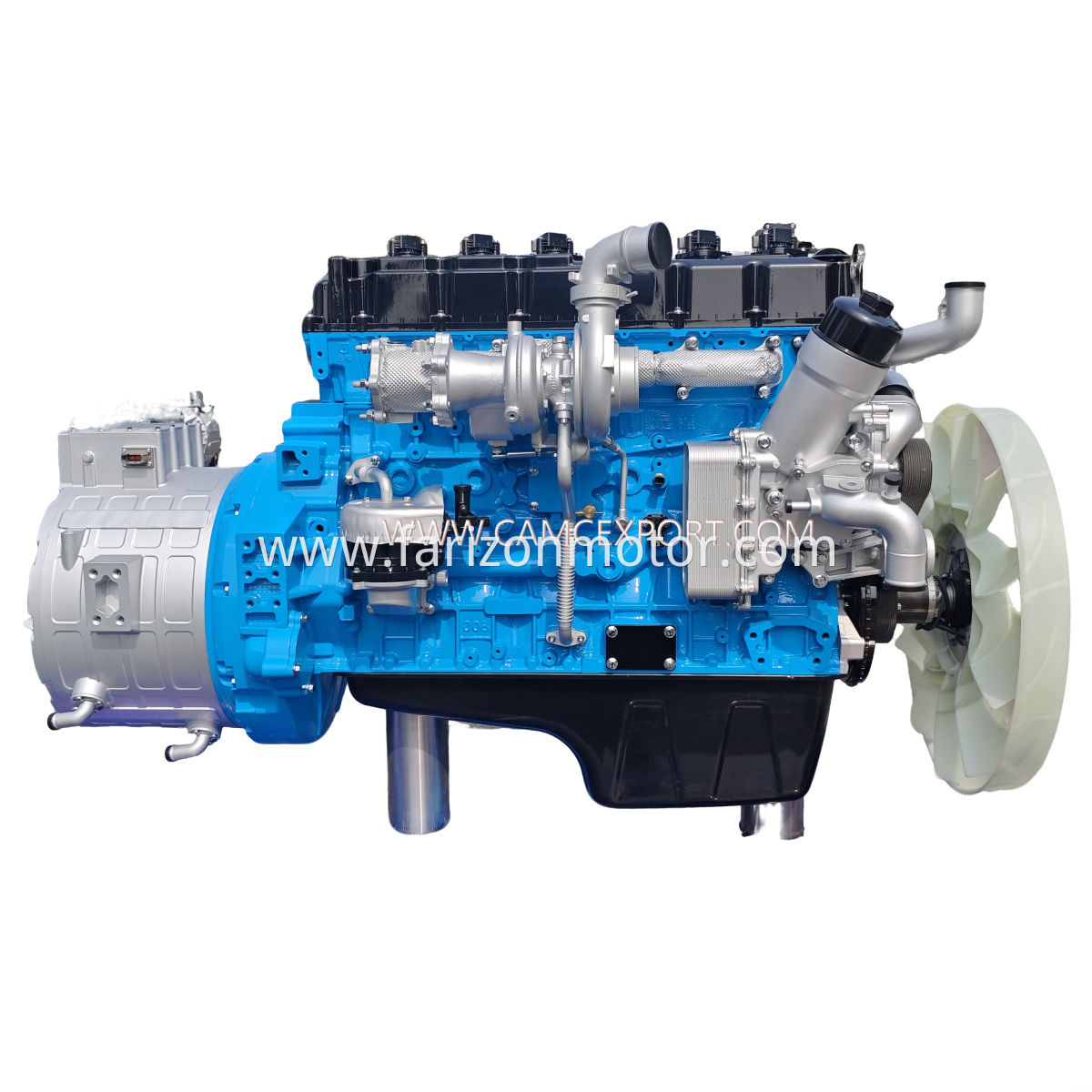

Efficient Combustion Methanol Engine for Truck Applications
Efficient Combustion Methanol Engine for Truck Applications
Efficient Combustion Methanol Engine for Truck Applications
Efficient Combustion Methanol Engine for Truck Applications
Efficient Combustion Methanol Engine for Truck Applications

Efficient Combustion Methanol Engine for Truck Applications

Get Latest Price
    Contact Now
    Share:
    • Min. Order: 1
    Description
    Product Attributes

    Model No.: GS14M540H-61 GS14M510H-61 GS14M480H-61

    Packaging & Delivery
    Product Description
    The methanol non road GS13M series engine has fully switched to the second - generation Geely autonomous methanol control system, using M100 methanol Clean energy. It has comprehensive improved in efficient combustion, low - temperature starting, intelligent diagnosis, emission control, corrosion resistance, and wear resistance, creating excellent performance of this engine with high performance, low Fuel consumption, high reliability, and low emissions. Fully validated under application conditions such as Generator sets, ship engines, and construction machinery.
    High performance: adopting high compression ratio, high - energy ignition, high roll flow inlet structure, while optimizing the valve timing mechanism, adopting technologies such as intake turbocharging and intercooling to make combustion more complete and power more powerful.
    Low fuel consumption: optimizing combustion through the second - generation Geely autonomous methanol control system, the engine has better fuel economy, low operating cost, and extremely high cost - effectiveness, which can save 20% compared to Diesel Engines in terms of economy.
    High reliability: Adhere to the concept of high - quality development, from a technical perspective CAE analysis and experimental verification are considered from multiple dimensions to ensure reliable product quality and long service life, B10 has a lifespan of ≥ 1.2 million kilometers.
    Ultra low emissions: Methanol  is recognized as a clean energy source. Compared to conventional fuels such as gasoline and diesel,  methanol combustion is more complete and thorough, and its emissions include CO HC and NOx emissions have significantly decreased, with almost no particulate emissions, and emissions have decreased by ≥ 85%.
    44
    Engine performance parameters
    Model
    Main technical parameters
    		 Unit GS14M540H-61 GS14M510H-61 GS14M480H-61
    Type -
    Inline six-cylinder, water-cooled, methanol-fueled engine
    Fuel type -
    Main fuel: M100 methanol Auxiliary starting fuel: 92# gasoline
    Without using gasoline auxiliary starting device, the standard coolant heating system is required to ensure engine starting

    Number of cylinders-bore*stroke
    		 mm 6-133*164
    Engine displacement L 13.67
    Firing order - 1-5-3-6-2-4
    Rated power/speed kW/r/min 397/1800 375/1800 353/1800
    Maximum torque/speed N.m/r/min 2500/(1100~1400) 2400(1000~1400) 2300(1000~1400)
    Idle speed r/min 600±50
