FARIZON MOTOR TECHNOLOGY CO.,LTD

Products> Diesel Engine> Diesel Mobile Power Engine> Diesel Engine for Low-Maintenance Fleets
Diesel Engine for Low-Maintenance Fleets
Diesel Engine for Low-Maintenance Fleets
Diesel Engine for Low-Maintenance Fleets
Diesel Engine for Low-Maintenance Fleets
Diesel Engine for Low-Maintenance Fleets
Diesel Engine for Low-Maintenance Fleets

Diesel Engine for Low-Maintenance Fleets

Get Latest Price
    Share:
    • Min. Order: 1
    Description
    Product Attributes

    Model No.HM09F/HM08F

    Packaging & Delivery
    Product Description

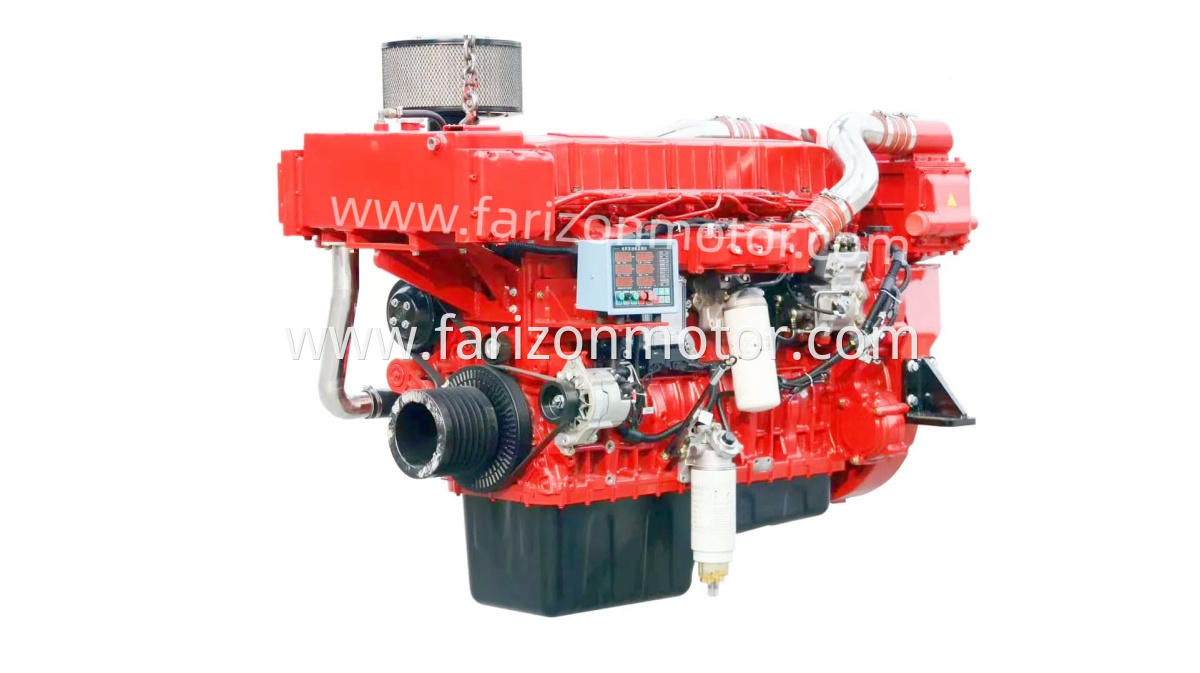

    HM08F/HM09F series engines adopt the international advanced design concept: single overhead camshaft,integral cylinder head, inline,six cylinders, turbocharger,water cooled, four valves, four strokes, high power Diesel Engine with rear gear chamber.
    The core components are imported with original packaging to ensure the reliability of the engine. The B10 life reaches 30000h.
    The BOSCH high pressure common rail system, with a maximum rail pressure of up to 1600bar, enables multiple injection to be achieved, improving fuel economy and reducing combustion noise.
    The components adopt modular design, the structure of which is compact for water pump,oil pump, and oil cooling and convenientmaintenance;The cylinder head adopts upper and lower double-layer cooling, and the cylinder body adopts a wet cylinder liner, which has good heat dissipation effect;The fuel filter and the oil filter adopt spinon filters for low cost maintenance.

    发动机性能参数 Engine performance parameters
    型号 Model 单位 Unit  HM08F.310 30 HM09F.350 30 HM09F.375 32
    额定功率/转速 Rated power/Speed kW/rpm 230/1500 257/1500 275/1800
    超负荷功率 Overload power/Speed kW/rpm 253/1500 282/1500 303/1800
    缸数 Number of cylinders - 6 6 6
    缸径*行程 Bore*Stroke   110*136 112*150 112*150
    压缩比 Compression ratio  - 17.5:1 17.5:1 17.5:1
    排量 Displacement L 7.8 8.9 8.9
    比油耗 Specific fuel consumption g/kW·h ≤184 ≤186 ≤190
    机油容量 Oil capacity L 29 29 29
    排放水平 Emission level - GB20891中国第三阶段 China Phase III
    长*宽*高 L*W*H mm 1816*864*1398 1842*903*1398  1842*903*1398
    推荐机组常用功率 Recommended Rated power kW 200 230 250
    推荐机组备用功率 Recommended Overload power kW 230 250 280
