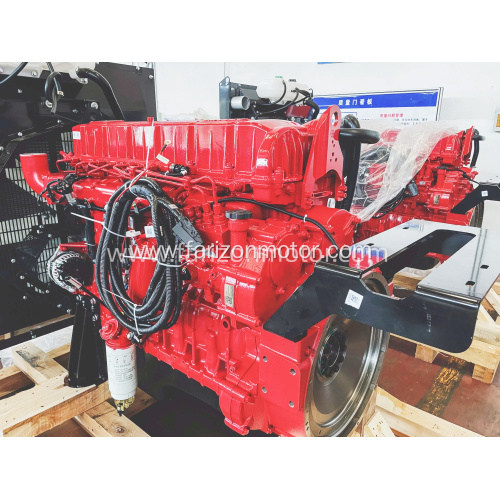

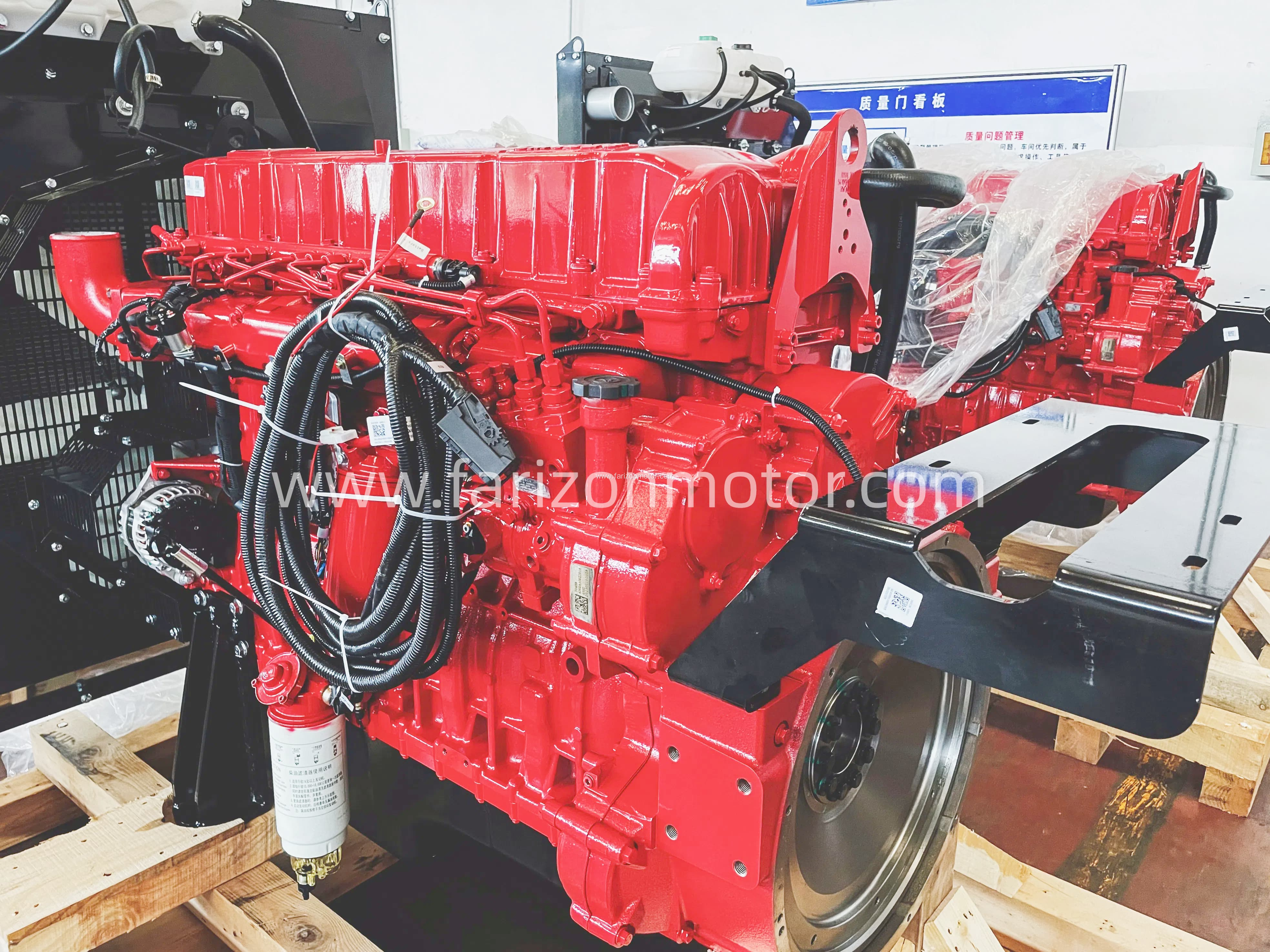

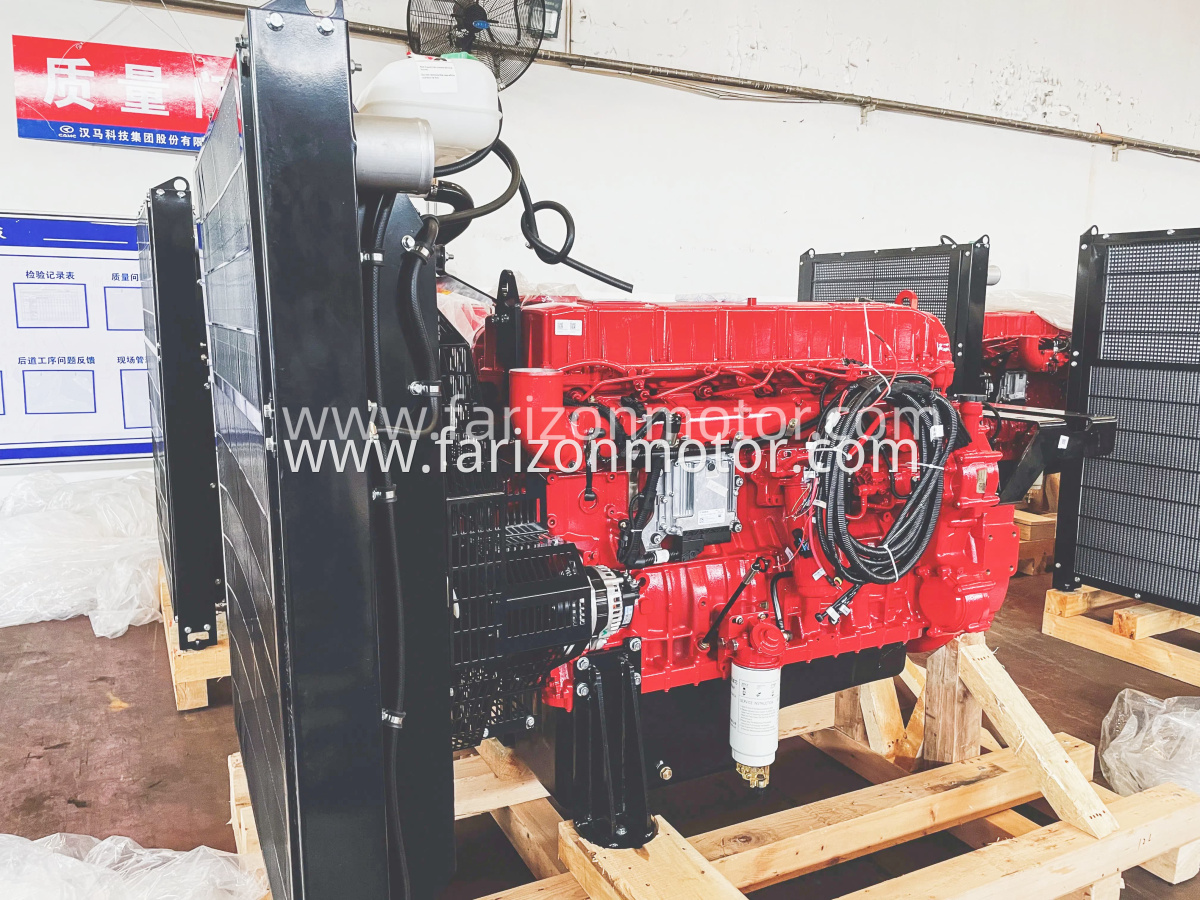

AVL-CamTech Diesel Engine for High-Reliability Machinery
AVL-CamTech Diesel Engine for High-Reliability Machinery
AVL-CamTech Diesel Engine for High-Reliability Machinery
AVL-CamTech Diesel Engine for High-Reliability Machinery
AVL-CamTech Diesel Engine for High-Reliability Machinery
AVL-CamTech Diesel Engine for High-Reliability Machinery
AVL-CamTech Diesel Engine for High-Reliability Machinery

AVL-CamTech Diesel Engine for High-Reliability Machinery

Get Latest Price
    Contact Now
    Share:
    • Min. Order: 1
    Description
    Product Attributes

    Model No.: HM14/HM13F/CM6D30F/CM6D28F/CM6D18F

    Packaging & Delivery
    Product Description
    Advantage 1:high power density
    High power and torque,Fast response of acceleration and deceleration;Light weight.
    Advantage 2:Low fuel consumption and economical
    Mainly use the air-to-air cooling technology for improving fuel economy and the German BOSCH high-pressure common railfuel systemfeatured with the maximum rai pressure up to 1800Bar,the good fuel atomizationand the sufficientcombustion.
    Advantage 3:Strong environmental adaptability
    Adopting a supercharge with a bleed valve featured with Strong environmental adaptability and high efficiency in both plain areas and plateau areas,importantily there is no power loss at an altitude of 3000 meters.
    Advantage 4:Compact structure and convenient maintenance
    The components adopt modular design,the structure of which is compact for water pump,oil ump,and oil cooling and convenientmaintenance;The cylinder head adopts upper and lower double-layer cooling and the cylinder body adopts a wet cyinder liner,which has good heat disipation effect;The fuel fiter and the oil fiter adopt spin-on fiters for low cost maintenance.
    Advantage 5:Advanced design,high reliability
    Cyinder head: The design of integral cylinder head and 4 valves per cylinder improves the charging eficiency,fully combustion and low emisions;
    Cylinder block: adopts a gantry-type cyinder block wih strong overal rigidity,low vibration and low noise.The deign has won a number of Chinesepatent awards;
    Camshaft:A  camshaft as a whole can withstand higher loads.AVL's unique patented cam profile design can not only accurately control the valvetiming,but also reduce the impact of valve seating and improve product reliability and durability;
    Crankshaft:Integral forged steel crankshaft with high fatigue strength and good reliability;
    Connecting rod:Adoptdesign technology to ensure good meshing.high strength and high explosion pressure;
    Piston:Adopt advanced casting technology to ensure that the product can be well matched at hioh and low temperatures.
    The open combustionchamber design optimizes the vortex,turbulence and squeeze flow of the intake to ensure a more uniform mixture.
    Advantage 6:First-class quality because of intermationalized supply system
    The main parts and components are purchased internationally,and the core parts are all from international brands with reliable quality.

    发动机性能参数 Engine performance parameters
    型号Model 单位Unit HM14.610 61(车机) HM13F.612 30 HM13F.500 31 CM6D30F.408 30 CM6D28F.350 30 CM6D18F.290 30
    额定功率/转速
    Rated power/Speed    		 kW/rpm 448/1700 450/1500 368/1500 408/1500 350/1500/ 290/1500
    超负荷功率/转速
    Overload power/Speed    		 kW/rpm - 505/1500 405/1500 450/1500 370/1500 320/1500
    缸数Number of cylinders - 6 6 6 6 6 6
    缸径x行程BorexStroke mm 113x164 130x161 130x161 130x161 128x153 118x150
    压缩比Compression ratio - 20:1 17:1 17:1 17:1 17:1 17:1
    排量Displacement L 13.68 12.8 12.8 12.8 11.8 9.8
    比油耗Specific fuel consumption g/kW·h ≤186 ≤184 ≤189 ≤184 ≤186 ≤186
    机油容量Oil capacity L 41 41 41 41 38 34
    排放水平Emission level - GB18352.6-2018Vlb GB20891中国第三阶段 China Phase III（CM6D30F系列已完成非道路四阶段排放标准认证）
    长x宽x高L×W×H mm 1641x1038x1220 1432x927x1204 1432x927x1204 1432x927x1204 1373x812x1138 1334x825x1137
    重量Weight kg 1084 1078 1078 1078
    1065
    		 980
    推荐组常用功率Recommended Rated power kW - 400 320 360 320 260
    推荐机组备用功率Recommended Overload power kW - 450 370 400 350
    290
