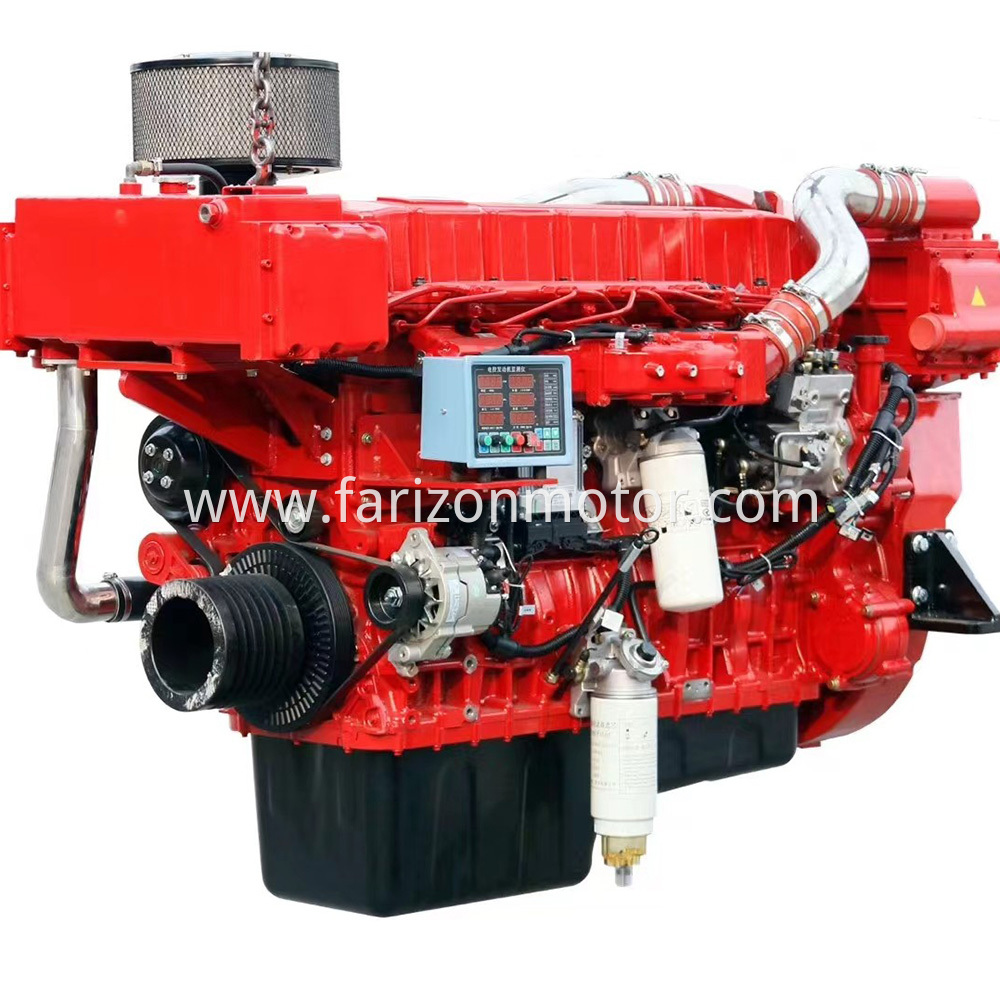

Construction Machinery Excavator Diesel Engine Assembly
Construction Machinery Excavator Diesel Engine Assembly
Construction Machinery Excavator Diesel Engine Assembly
Construction Machinery Excavator Diesel Engine Assembly
Construction Machinery Excavator Diesel Engine Assembly

Construction Machinery Excavator Diesel Engine Assembly

Get Latest Price
    Contact Now
    Share:
    • Min. Order: 1
    Description
    Product Attributes

    Model No.: CM6D30F

    Packaging & Delivery
    Product Description
    Our advanced diesel engines deliver unmatched fuel efficiency and robust performance for the toughest industrial, automotive, and power-generation challenges. Engineered with cutting-edge technology, these engines maximize uptime while minimizing operational costs and environmental impact.
    Advantage 1:high power density
    High power and torque,Fast response of acceleration and deceleration;Light weight.
    Advantage 2:Low fuel consumption and economical
    Mainly use the air-to-air cooling technology for improving fuel economy and the German BOSCH high-pressure common railfuel systemfeatured with the maximum rail pressure up to 1800Bar,the good fuel atomizationand the sufficientcombustion.
    Advantage 3:Strong environmental adaptability
    Adopting a supercharge with a bleed valve featured with Strong environmental adaptability and high efficiency in both plain areas and plateau areas,importantily there is no power loss at an altitude of 3000 meters.
    Advantage 4:Compact structure and convenient maintenance
    The components adopt modular design,the structure of which is compact for water pump,oil ump,and oil cooling and convenient maintenance;The cylinder head adopts upper and lower double-layer cooling and the cylinder body adopts a wet cyinder liner,which has good heat disipation effect;The fuel fiter and the oil fiter adopt spin-on fiters for low cost maintenance.
    Advantage 5:Advanced design,high reliability
    Cyinder head: The design of integral cylinder head and 4 valves per cylinder improves the charging eficiency,fully combustion and low emisions;
    Cylinder block: adopts a gantry-type cyinder block with strong overal rigidity,low vibration and low noise.The design has won a number of Chinese patent awards;
    Camshaft: A camshaft as a whole can withstand higher loads. AVL's unique patented cam profile design can not only accurately control the valvetiming,but also reduce the impact of valve seating and improve product reliability and durability;
    Crankshaft: Integral forged steel crankshaft with high fatigue strength and good reliability;
    Connecting rod: Adopt design technology to ensure good meshing.high strength and high explosion pressure;
    Piston: Adopt advanced casting technology to ensure that the product can be well matched at high and low temperatures.
    The open combustion chamber design optimizes the vortex,turbulence and squeeze flow of the intake to ensure a more uniform mixture.
    Advantage 6:First-class quality because of intermationalized supply system
    The main parts and components are purchased internationally,and the core parts are all from international brands with reliable quality.


    Applications

    • Power Generators & Backup Systems

    • Construction & Mining Equipment

    • Agricultural Machinery

    • Marine Propulsion & Auxiliary Power

    • Commercial Trucks & Buses


    发动机性能参数/Engine performance parameters
    型号Model 单位Unit CM6D30F.40830 CM6D30F.410.32
    额定功率/转速
    Rated power/Speed    		 kW/rpm 408/1500 410/1800
    超负荷功率/转速
    Overload power/Speed    		 kW/rpm 450/1500 450/1800
    缸数Number of cylinders   6  6
    缸径x行程BorexStroke mm 130x161 130x161
    压缩比Compression ratio   17:1 17.1
    排量Displacement L 12.8  12.8
    比油耗Specific fuel consumption g/kW ·h ≤184 ≤186
    机油容量Oil capacity L 41  41
    排放水平Emission level   GB20891中国第三阶段China PhaseⅢ(CM6D30F系列已完成非道路四阶段排放标准认证)
    长x宽x高L×W xH mm 1432×927×1204 1432×927×1204
    重量Weight kg 1078  1078
    推荐组常用功率Recommended Rated power kW 360  360
    推荐机组备用功率Recommended Overload power kW 400  400
